Ports: an output pad for a UART's TX or RX by MrScothh · Pull Request #2833 · iNavFlight/inav-configurator

MrScothh · 2026-10-10T23:03:26Z

Configurator side of iNavFlight/inav#12143, which lets a UART's TX or RX move to a motor or servo pad. It replaces #2814, the ESC connector option of iNavFlight/inav#12087.

The Ports tab gets a Pins column at the end of the table, only on boards whose firmware lists at least one pad. Firmware without the feature answers MSP2_INAV_SERIAL_PADS as unsupported, and the column stays hidden. Each UART that can move shows a TX and/or RX choice: "Own pin" or the S pads it can reach.

TX and RX sit side by side when the table still fits on one line, and one above the other when it would wrap. This is measured, not tied to a window width, so a longer translation moves the threshold.
A pad that carries a motor or servo of the mixer gets a red note such as "servo 1: no arming", because the firmware refuses to arm with it. A pad used by the LED strip says "replaces LED strip".
A pad chosen for one pin is greyed out in the others.
Save sends MSP2_INAV_SET_SERIAL_PAD for each changed choice before the port configuration. If the firmware, or the parse-failure guard, refuses one, the choices already sent are written back to what the tab loaded, and the save stops with a message in the log instead of rebooting as if it had been stored. The new write is paired with its read for the parse-failure guard (js/msp.js).

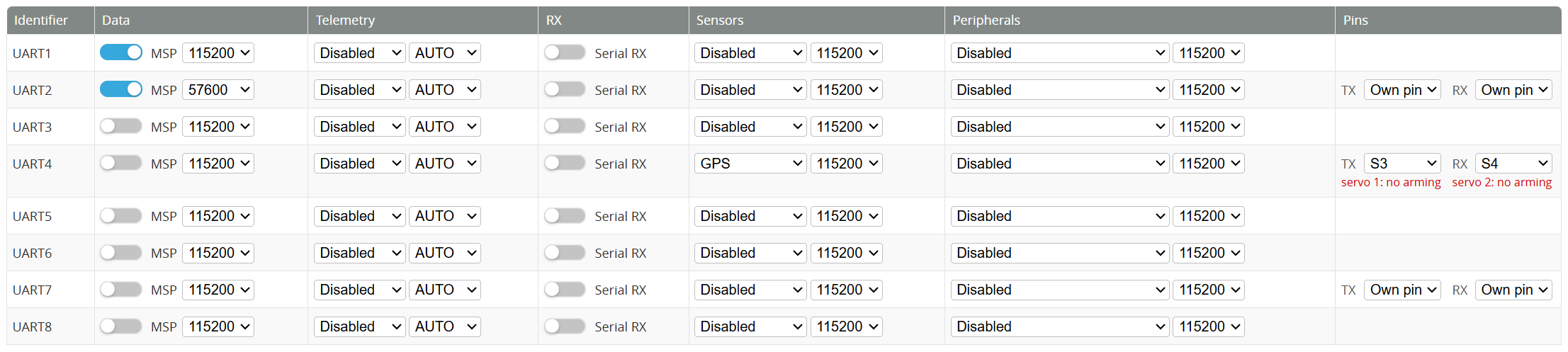

1920x1080 at 100 %, TX and RX side by side:

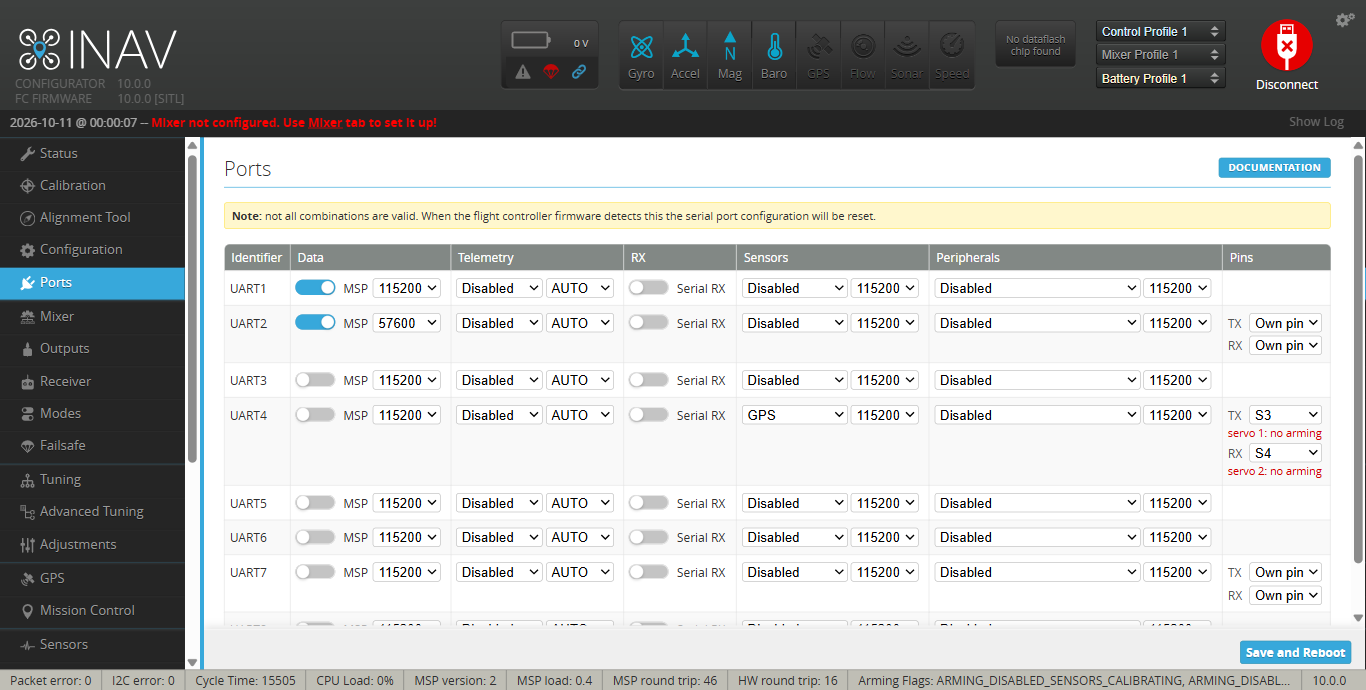

1366x768, one above the other:

The screenshots are from the SITL, which has no output pads, with MSP2_INAV_SERIAL_PADS answered by the list a TBS Lucid H7 Wing sent on my bench. The firmware side was tested on that board (see iNavFlight/inav#12143).

yarn test: all pass except unused MZTC writes remain unused and conservatively blocked, which fails on Windows on maintenance-10.x too: it excludes msp/MSPCodes.js with a forward slash, and readdirSync returns msp\MSPCodes.js there.

Test-merged with the open PRs that touch the same files: it conflicts with #2814, which this replaces, and in js/msp/MSPHelper.js with #2744 and #2832, where both sides add a case at the end of the same switch.

Firmware with USE_SERIAL_PADS lists, for each UART, the output pads its TX or RX can move to (MSP2_INAV_SERIAL_PADS). The Ports tab shows them in a Pins column at the end of the table: TX and RX side by side where the table still fits on one line, one above the other where it would wrap. Firmware without the feature answers unsupported and the column stays hidden. A pad that carries a motor or servo of the mixer gets a red note, because the board will not arm with it; a pad used by the LED strip says it replaces it. Saving sends MSP2_INAV_SET_SERIAL_PAD for each changed choice before the port configuration, and the write is paired with its read for the parse-failure guard.
