Outputs: give the Smart ESC calibration its own box

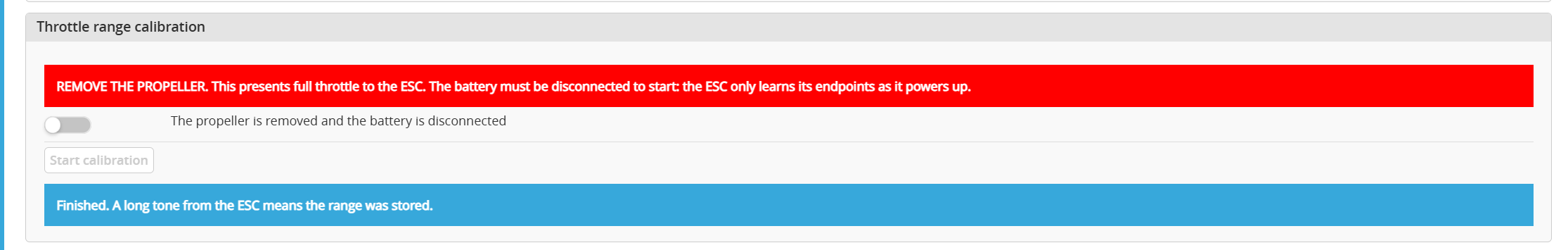

[MrScothh]

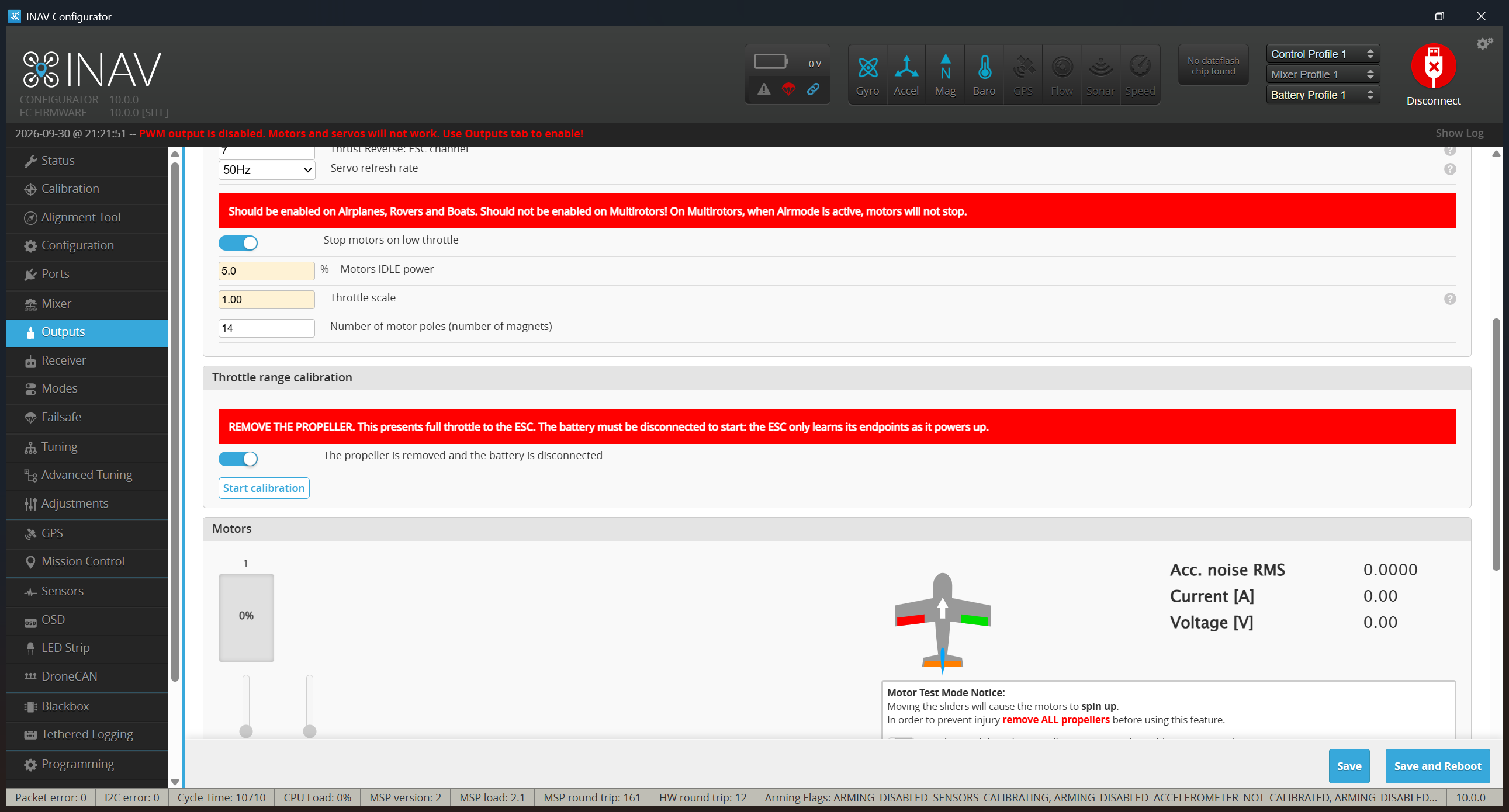

The Spektrum Smart ESC's throttle range calibration sat inside the Configuration box of the Outputs tab, under the SRXL2 settings, where it read as one more setting. It is a procedure run once on the bench, with its own warning and buttons, so this gives it a box of its own between Configuration and Motors. It shows with the SRXL2 protocol, as before.

Its two buttons used regular-button, which only the Onboard Logging tab styles, so here "Start calibration" showed as plain text, the same whether it could be pressed or not. They now use default_btn, as the buttons of the other tabs do: grey until the checkbox is ticked, blue after.

The change

• tabs/outputs.html: the calibration moves out of #srxl2-esc into its own gui_box, #srxl2-calibration, with the same title, warning, checkbox, buttons and status, and the same ids.
• tabs/outputs.js: srxl2UpdateVisibility() shows and hides it together with #srxl2-esc.
• src/css/tabs/motors.css: 10px under the button, because the status banner below it clears the floated button and so loses its own top margin.

What the calibration does is unchanged: the ids and the handlers are the same.

Tested

• SITL with SRXL2: the box between Configuration and Motors, hidden with another protocol, the button disabled and enabled by the checkbox, the status banner under it. I did not run a calibration, since SITL has no battery to detect.
• npm test: 290 of 291 pass. The one failure, "unused MZTC writes remain unused and conservatively blocked", fails the same way on maintenance-10.x.

Related

#2814 (the ESC connector option) changes the same two files. They merge without conflicts. I took the screenshot with the two together; nothing of #2814 is in view.

#2828 (a protocol change calls off the calibration) also changes srxl2UpdateVisibility(). The two merge cleanly in either order; I'll run them together on a board before either is merged.
