layout columns

layout-columns attribute

Synopsis

An attribute used only by the <grid> tag specifying the number of columns to use in the grid layout of the container.

Usage

<grid layout-columns="NUM_COLUMNS" ...>

...
</grid>

Where NUM_COLUMNS is an integer representing the number of columns in the grid layout.

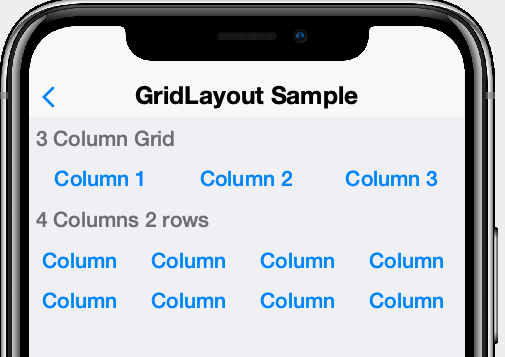

Example

<?xml version="1.0"?>
<y xsi:noNamespaceSchemaLocation="GridLayoutSample.xsd" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <title>GridLayout Sample</title>
    <label>3 Column Grid</label>
    <grid layout-columns="3">
        <button>Column 1</button>
        <button>Column 2</button>
        <button>Column 3</button>
    </grid>

    <label>4 Columns 2 rows</label>
    <grid layout-columns="4" layout-rows="2">
        <button>Column 1</button>
        <button>Column 2</button>
        <button>Column 3</button>
        <button>Column 4</button>
        <button>Column 1</button>
        <button>Column 2</button>
        <button>Column 3</button>
        <button>Column 4</button>
    </grid>
</y>
