Features

This library has two features: an advanced control system and a bind menu.

The control system allows you to easily process inputs using the events ControlDown, ControlUp, and ControlHeld.

The bind menu gives you a GWEN control that users can set their binds to. Settings are automatically saved to the server database.

Any kind of input is supported:

• Gamepad buttons and axes
• Keys
• Mouse buttons
• Mouse scroll wheel
• Mouse movement

Usage

Creating the bind menu control (client)

-- Create the GWEN control.
local bindMenu = BindMenu.Create(parentControl)
-- Add controls, using a name and default input.
bindMenu:AddControl("Toggle left eyelid" ,      "C")                -- Key
bindMenu:AddControl("Toggle right eyelid" ,     "Tab")              -- Key
bindMenu:AddControl("Move eyes left" ,          "Mouse left")       -- Mouse movement
bindMenu:AddControl("Move eyes right" ,         "Mouse right")      -- Mouse movement
bindMenu:AddControl("Cross eyes" ,              "Mouse3")           -- Mouse button
bindMenu:AddControl("Move left eyebrow up" ,    "VehicleFireLeft")  -- Action, used by gamepad button
bindMenu:AddControl("Move left eyebrow down" ,  "MoveLeft")         -- Action, used by gamepad axis
bindMenu:AddControl("Move right eyebrow up" ,   "Mouse wheel up")   -- Mouse wheel
bindMenu:AddControl("Move right eyebrow down" , "Mouse wheel down") -- Mouse wheel
-- Ask the server for our stored settings.
bindMenu:RequestSettings()

Note: due to a scripting limitation, make sure you call bindMenu:Remove() instead of just removing the bind menu's parent.

Using controls (client)

You can use the following events:

• ControlDown
• ControlUp
• ControlHeld

Controls have the following properties:

• name (string; Given in the bind menu creation, such as "Toggle left eyelid".)
• type (string)
  • "Action"
  • "Key"
  • "MouseButton"
  • "MouseWheel"
  • "MouseMovement"
• state (number between 0 and 1 for most controls)
  • NOTE: For mouse movement, this is the movement of the mouse in pixels.
• value (used internally)
• valueString (string; The presentable name, such as "Mouse wheel up".)

Events:Subscribe("ControlDown" , function(control)
	Chat:Print("Control down: "..control.name , Color(220 , 255 , 220))
end)

Events:Subscribe("ControlUp" , function(control)
	Chat:Print("Control up: "..control.name , Color(255 , 220 , 220))
end)

Events:Subscribe("ControlHeld" , function(control)
	Chat:Print("Control held: "..control.name..", state: "..control.state , Color(255 , 220 , 220))
end)

Be careful when using mouse movement's state. If you have a boost button that multiplies the boost by control.state, be sure to clamp it between 0 and 1. Otherwise, if someone binds a mouse direction to it, they can easily boost 20 times as much as they should, because control.state is the number of pixels moved per frame.

Other functions

• Controls.Add(name, default)
• Controls.Remove(controlName)
• Controls.GetInputNameByControl(controlName)
  • Example: Controls.GetInputNameByControl("Cross eyes") will return "Mouse3"
• Controls.Get(controlName)
• Controls.GetIsHeld(controlName)

Examples

See https://github.com/dreadmullet/JC2-MP-Noclip for a full demonstration of how to use controls and set up the bind menu.

Screenshots

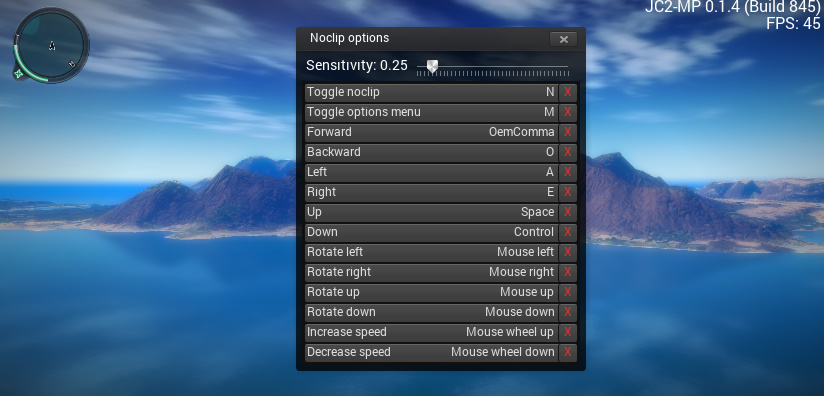

Noclip's settings menu.

Racing's setting menu.
