[codex] Render streaming assistant deltas#753

Open
neubig wants to merge 11 commits into
mainfrom
codex/acp-streaming-deltas-ui
Open

[codex] Render streaming assistant deltas#753
neubig wants to merge 11 commits into
mainfrom
codex/acp-streaming-deltas-ui

Conversation

@neubig
Copy link
Copy Markdown
Member

@neubig neubig commented May 24, 2026

Summary

  • add a StreamingDeltaEvent frontend type and guard
  • render streaming text deltas as a provisional assistant bubble during a run
  • merge consecutive deltas and reconcile them against the final persisted assistant message without moving streamed text to the end of the conversation
  • keep the normal optimistic user-message behavior unchanged; the experimental optimistic-message anchoring/queued-state changes were reverted

Root Cause

The agent-server can publish transient StreamingDeltaEvents, but agent-canvas treated unknown base-shaped events as non-renderable. After the first UI fix, final-message reconciliation could remove the provisional streaming deltas from their original location and leave the completed text at the end. The current branch keeps streamed content anchored where it originally appeared.

Human Validation

HUMAN: I tested this and confirmed that it is working.

Before
Screenshot 2026-05-24 at 8 18 02 AM

After
Screenshot 2026-05-24 at 8 18 10 AM

Validation

  • npm test -- --run __tests__/utils/handle-event-for-ui.test.ts __tests__/components/conversation-events/chat/event-content-helpers/should-render-event.test.ts
  • npm run typecheck
  • npm run build

Companion SDK/server PR: OpenHands/software-agent-sdk#3376


🐳 Docker images for this PR

GHCR package: https://github.com/OpenHands/agent-canvas/pkgs/container/agent-canvas

Component Value
Image ghcr.io/openhands/agent-canvas
Architectures amd64, arm64
Agent Server ghcr.io/openhands/agent-server:1.23.1-python
Automation openhands-automation==1.0.0a5
Commit 0359f1f0a17103b4659b6424e046956517527766

Pull (multi-arch manifest)

# Multi-arch manifest — Docker automatically pulls the correct architecture
docker pull ghcr.io/openhands/agent-canvas:sha-0359f1f

Run

docker run -it --rm \
  -p 8000:8000 \
  ghcr.io/openhands/agent-canvas:sha-0359f1f

All tags pushed for this build

ghcr.io/openhands/agent-canvas:sha-0359f1f-amd64
ghcr.io/openhands/agent-canvas:codex-acp-streaming-deltas-ui-amd64
ghcr.io/openhands/agent-canvas:pr-753-amd64
ghcr.io/openhands/agent-canvas:sha-0359f1f-arm64
ghcr.io/openhands/agent-canvas:codex-acp-streaming-deltas-ui-arm64
ghcr.io/openhands/agent-canvas:pr-753-arm64
ghcr.io/openhands/agent-canvas:sha-0359f1f
ghcr.io/openhands/agent-canvas:codex-acp-streaming-deltas-ui
ghcr.io/openhands/agent-canvas:pr-753

About Multi-Architecture Support

  • Each tag (e.g., sha-0359f1f) is a multi-arch manifest supporting both amd64 and arm64
  • Docker automatically pulls the correct architecture for your platform
  • Individual architecture tags (e.g., sha-0359f1f-amd64) are also available if needed

@vercel
Copy link
Copy Markdown

vercel Bot commented May 24, 2026

The latest updates on your projects. Learn more about Vercel for GitHub.

Project Deployment Actions Updated (UTC)
agent-canvas Ready Ready Preview, Comment May 28, 2026 9:05am

Request Review

@neubig neubig marked this pull request as ready for review May 24, 2026 13:07
Co-authored-by: openhands <openhands@all-hands.dev>
Copy link
Copy Markdown
Member Author

neubig commented May 24, 2026

Pushed f018116 to stabilize the home page visual snapshot setup: mocked the workspaces API and increased the home-screen visibility wait. Local verification: npm run typecheck, focused Vitest suites (30 passed), and the home-page snapshot test now reaches the screenshot assertion locally instead of timing out on home-screen.\n\n_This comment was generated by an AI agent (OpenHands) on behalf of neubig._

@simonrosenberg
Copy link
Copy Markdown
Contributor

LGTM! Only notable "bug", flagged by AI, worth fixing

 Merged delta bubble's id churns every token → React remount per token. mergeStreamingDeltaEvent spreads ...incoming, so the merged bubble takes each new delta's id. The render list keys on key={event.id} (messages.tsx:42). So during streaming the provisional bubble gets a new key on every delta → React unmounts/remounts EventMessage/ChatMessage per token. That causes flicker, lost text selection, scroll jank, and re-running markdown/code-highlight on every token — for the exact feature this PR introduces.
  - Fix: spread ...existing (keep the first delta's id and timestamp, only update content/reasoning_content). Note deltas must keep distinct incoming ids anyway, because appendEvent/addEvents dedupe by id (use-event-store.ts) — so anchoring to the existing id is both stable and safe.

@all-hands-bot all-hands-bot added the update-snapshots Intentional snapshot changes — CI diff check bypassed; new baselines uploaded on merge label May 28, 2026 — with OpenHands AI
github-actions Bot added a commit that referenced this pull request May 28, 2026
@all-hands-bot all-hands-bot removed the update-snapshots Intentional snapshot changes — CI diff check bypassed; new baselines uploaded on merge label May 28, 2026
@all-hands-bot all-hands-bot added the update-snapshots Intentional snapshot changes — CI diff check bypassed; new baselines uploaded on merge label May 28, 2026 — with OpenHands AI
github-actions Bot added a commit that referenced this pull request May 28, 2026
github-actions Bot added a commit that referenced this pull request May 28, 2026
@all-hands-bot all-hands-bot removed the update-snapshots Intentional snapshot changes — CI diff check bypassed; new baselines uploaded on merge label May 28, 2026
@all-hands-bot all-hands-bot added the update-snapshots Intentional snapshot changes — CI diff check bypassed; new baselines uploaded on merge label May 28, 2026 — with OpenHands AI
Copy link
Copy Markdown
Contributor

Branch Update & CI Status

What was done:

  • Updated branch with main (was 43 commits behind) via GitHub's update-branch API
  • Added update-snapshots label to acknowledge the 2 expected MCP-page snapshot changes introduced by this PR

CI status:

  • test-and-build (ubuntu) — PASS
  • Docker Build & Push — PASS
  • Vercel Preview Comments — PASS
  • PR Artifacts — PASS
  • Visual Snapshot Tests — Snapshot update run triggered. Previous run acknowledged 2 changed MCP snapshots (71/73 unchanged); the generation takes ~15-30 min and has had runner instability (OOM/timeout) across multiple attempts. A fresh run is in progress.

The update-snapshots label is applied, so the 2 changed MCP snapshots are already acknowledged as expected for this PR.

This comment was posted by an AI agent (OpenHands) on behalf of the user.

github-actions Bot added a commit that referenced this pull request May 28, 2026
The MCP install modal calls testMcpServer() before saving, which hits
POST /api/mcp/test. MSW has no handler for this endpoint, so the request
falls through the Vite proxy to port 8000 — which is not running in CI —
causing ECONNREFUSED. The modal then stays open indefinitely, crashing the
'install Slack from marketplace' and 'add custom SSE server' snapshot tests
at step 4 with expect(locator).not.toBeVisible() timeout.

Add a page.route() intercept in setupMocks() that returns {ok:true,tools:[]}
so the install flow can proceed to addMcpServer (handled by MSW's PATCH
/api/settings handler) and the modal closes normally.

Co-authored-by: openhands <openhands@all-hands.dev>
@github-actions
Copy link
Copy Markdown
Contributor

📸 Snapshot Test Report

Warning

Snapshot comparison step crashed (timeout, OOM, or runner error) — diff results below may be incomplete or absent.
Check the CI logs for the full error output (look for the "Run snapshot comparison" step).

Warning

One or more snapshot tests crashed during generation — some snapshots below may be incomplete.
Check the CI logs for the full error output (look for the "Generate current PR snapshots" step).

✅ 3 snapshots changed — acknowledged via the update-snapshots label. New baselines will be uploaded when this PR merges.

Category Count
🔴 Changed 3
🆕 New 0
✅ Unchanged 70
Total 73
🔴 Changed snapshots (3)

backends-extended

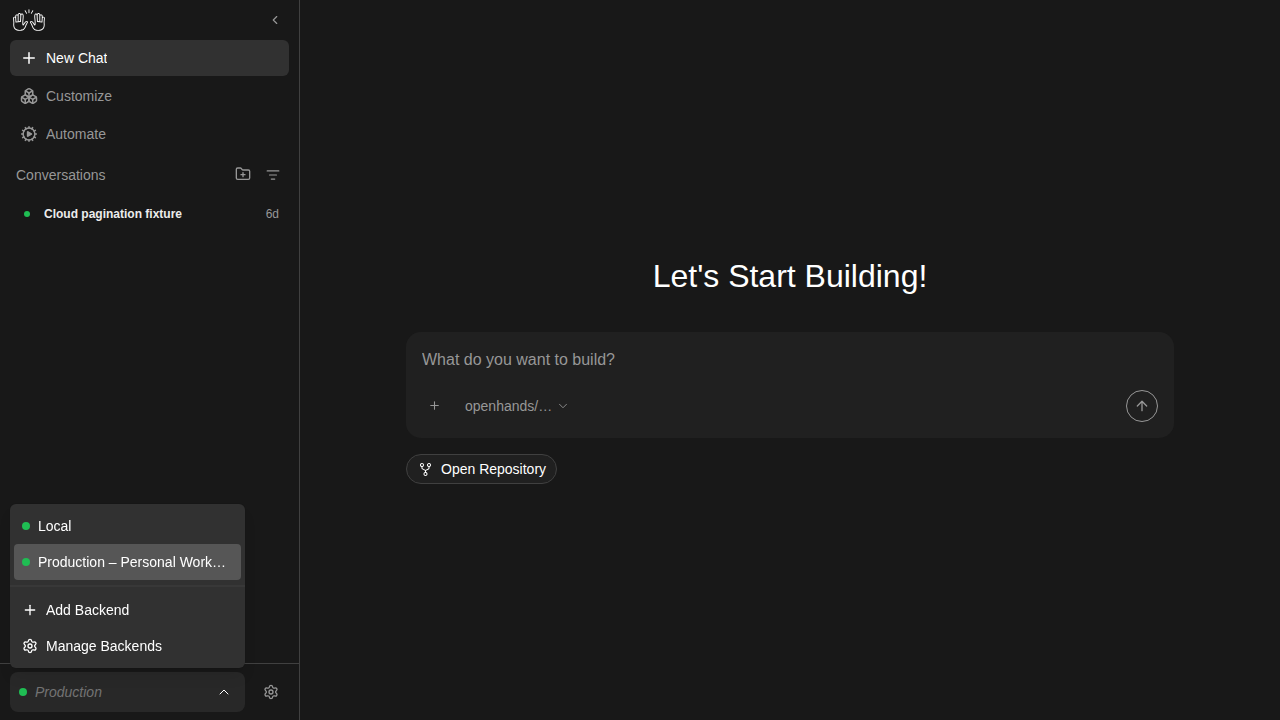

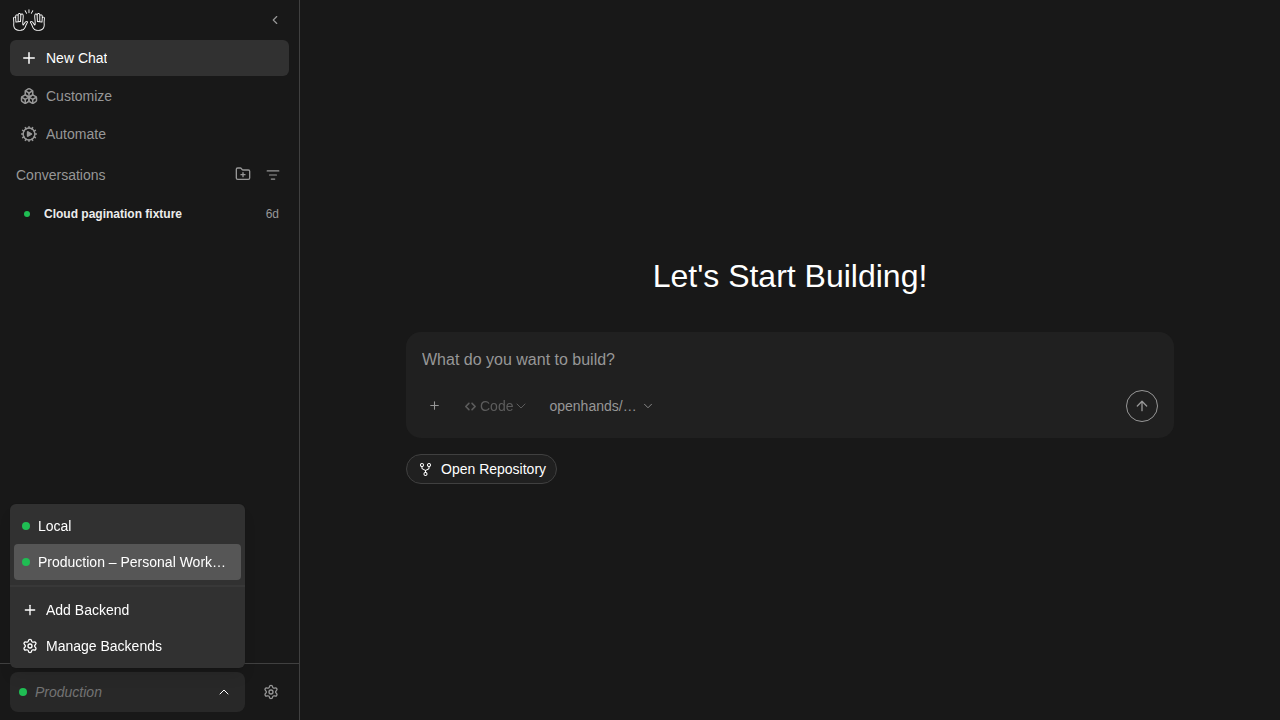

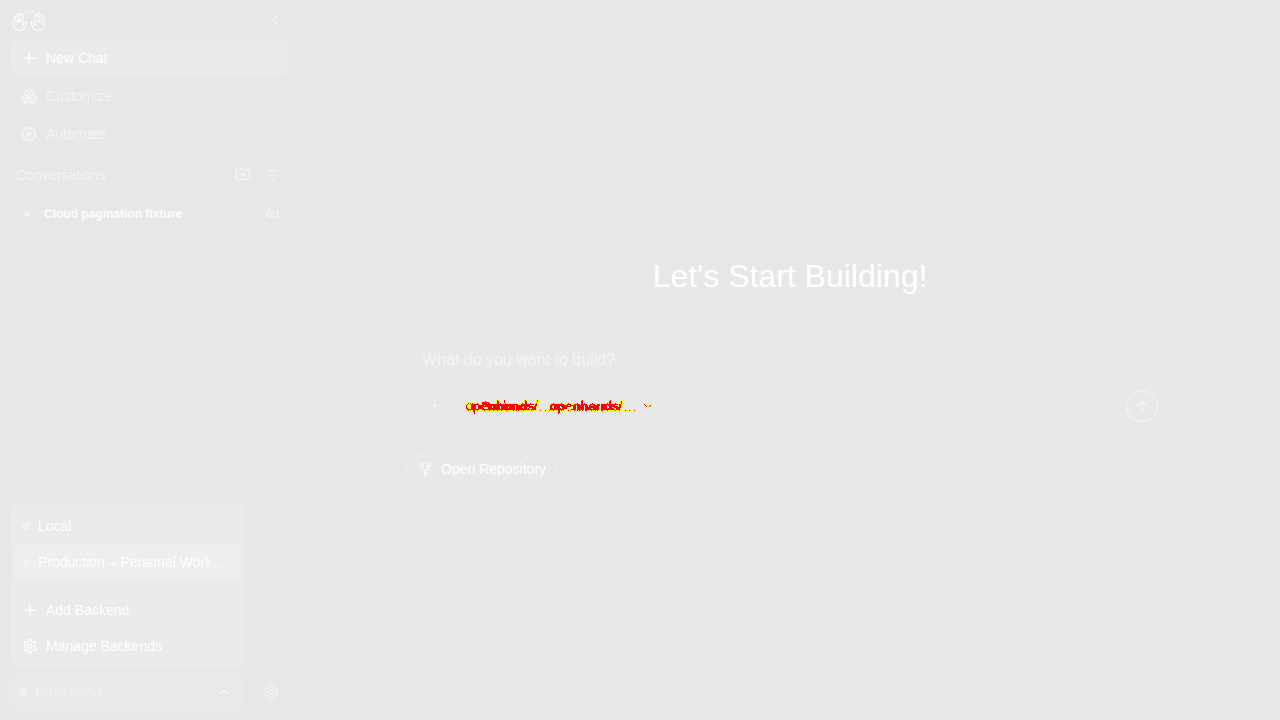

backend-after-switch

Expected (main) Actual (PR) Diff
expected actual diff

mcp-page — 2 snapshots

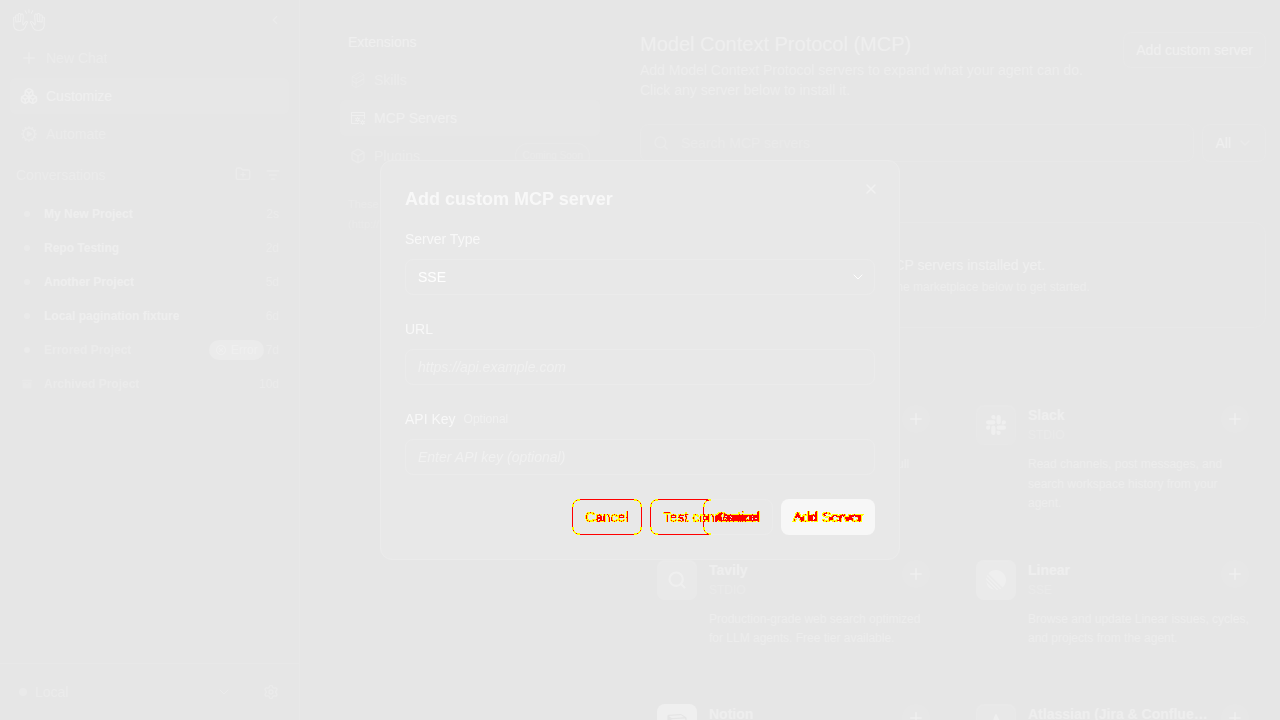

mcp-custom-server-1-editor-open

Expected (main) Actual (PR) Diff
expected actual diff

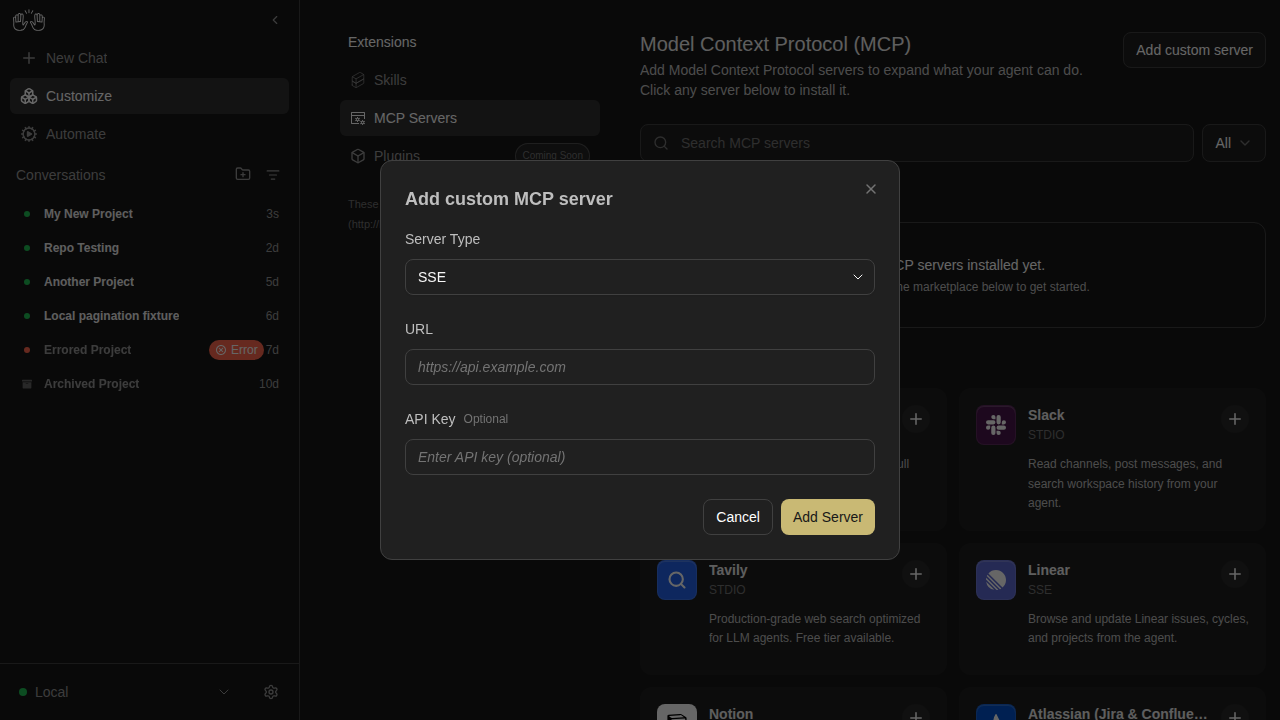

mcp-custom-server-editor

Expected (main) Actual (PR) Diff
expected actual diff
✅ Unchanged snapshots (70)

archived-conversation

  • conversation-panel-with-archived-badges
  • conversation-view-archived
  • conversation-view-sandbox-error

automations

  • automations-delete-modal
  • automations-list-active-inactive
  • automations-no-automations
  • automations-search-no-results

backends-extended

  • backend-add-blank-disabled
  • backend-add-cloud-advanced-open
  • backend-add-cloud-no-key-disabled
  • backend-add-cloud-with-key-enabled
  • backend-add-form-partially-filled
  • backend-add-invalid-url-disabled
  • backend-add-local-ready
  • backend-add-name-only-disabled
  • backend-add-two-column-layout
  • backend-add-whitespace-host-disabled
  • backend-cancel-nothing-saved
  • backend-dropdown-two-backends
  • backend-edit-prefilled
  • backend-manage-after-removal
  • backend-manage-two-listed
  • backend-remove-cancelled
  • backend-remove-confirmation
  • backend-switch-overlay

backends

  • backend-add-modal
  • backend-manage-modal
  • backend-selector-open

changes-tab

  • changes-deleted-file
  • changes-diff-viewer
  • changes-empty

collapsible-thinking

  • reasoning-content-collapsed
  • reasoning-content-expanded
  • think-action-collapsed
  • think-action-expanded

mcp-page

  • mcp-custom-server-2-url-filled
  • mcp-custom-server-3-all-filled
  • mcp-custom-server-4-installed
  • mcp-empty-installed
  • mcp-search-filtered
  • mcp-slack-install-1-marketplace
  • mcp-slack-install-2-modal
  • mcp-slack-install-3-filled
  • mcp-slack-install-4-installed

onboarding

  • onboarding-step-0-choose-agent
  • onboarding-step-1-check-backend
  • onboarding-step-2-setup-llm
  • onboarding-step-3-say-hello

projects-workspace-browser

  • projects-workspace-browser

settings-page

  • add-backend-modal
  • analytics-consent-modal
  • home-screen
  • settings-app-page
  • settings-page

settings-secrets

  • secrets-add-form-filled
  • secrets-add-form
  • secrets-after-save
  • secrets-delete-confirm
  • secrets-list

settings-verification

  • condenser-settings
  • verification-settings-off
  • verification-settings-on

sidebar

  • sidebar-collapsed
  • sidebar-conversation-panel
  • sidebar-filter-menu

skills-page

  • skills-empty
  • skills-loaded
  • skills-no-match
  • skills-search-filtered
  • skills-type-filter

Generated by the Snapshot Tests workflow. This comment was created by an AI agent (OpenHands) on behalf of the repo maintainers.

…t tests

page.route() was not intercepting the MCP test request because MSW's
service worker passthrough issues a new fetch from the SW context, which
Playwright's CDP network interception doesn't see from the page context.

The correct fix is an MSW handler: POST */api/mcp/test returns {ok:true}
so the install modal proceeds to addMcpServer (already mocked via MSW's
PATCH /api/settings handler) and closes normally.

Also reverts the ineffective page.route() approach added in the previous
commit.

Co-authored-by: openhands <openhands@all-hands.dev>
