Project for my Bachelor's thesis "Gra turowa na trójwymiarowej mapie zaimplementowana z wykorzystaniem OpenGL" (eng. "Turn-based game on a 3D map implemented with OpenGL").

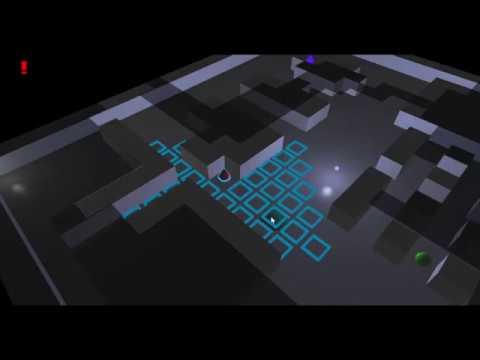

The game was mainly inspired by XCOM: Enemy Unknown. The goal of the thesis was to write a game entirely from scratch using relatively low-level libraries like OpenGL. The game features a 3D map -- it is divided into floors. The units can move vertically at specified "ladder" points and shoot lower/higher units through holes in the floors.
Below you will find a simplified description of the game. If you're interested in the technical documentation and more detailed description, you can download the thesis PDF from the release page. Unfortunately, it is only available in Polish and currently I have no plans for translating it.
Windows 64-bit executable and Linux 64-bit AppImage can be downloaded from the release page.
The game requires a graphics card with support for OpenGL 3.3.
The controls can be viewed by pressing the H button on your keyboard.
The game is a local multiplayer turn-based tactical game for 2 players. The goal is to destroy all of the opponent's units.
In each turn the current player can order their units to either move or shoot. Each unit starts with 2 action points at the beginning of a turn: a move costs 1 action point, while shooting costs all the available points (1 or 2). A turn can be ended anytime. Once a turn ends, the opponent's turn begins.
Units have only 1 hit point. Shooting results in destroying a unit with some probability. The probability depends on several factors:
- The taxi distance between the shooter and the target.
- The difference in height between the shooter and the target (that is whether the shooter has the high ground).
- Whether the target is hidden behind cover from the perspective of the shooter.
As you can see, the mechanics are quite simple and resemble a vastly simplified XCOM.
In folder assets/maps there are example maps to play the game on. The default map is named demo. You can change the map by specifying a command line argument to run the game. For example, running the following command will run the map defined in the folder assets/map/city:
./tactics_game --map=city
You can see the available options like enabling vsync, fullscreen mode or antialiasing by passing the -h argument to the command line.
$ ./tactics_game -h
2020-04-21 03:32:13.096 INFO [21044] [init_logger@20] Logger is working.
2020-04-21 03:32:13.097 INFO [21044] [tactics_game::game_application::init_options@43] ./tactics_game {OPTIONS}
Tactics Game
OPTIONS:
-h, --help Display this help menu
--vsync Vertical synchronization on
-f, --fullscreen Fullscreen on
--aa Anti-aliasing on
-d[assets_dir],
--assets-dir=[assets_dir] Path to assets directory (default:
{basedir}/assets)
--map=[map_name] Loads the map with given name (from
assets/maps/map_name directory)
The game uses files in the assets folder. They are mostly text files hence the user can modify them or add new ones without much hassle. The provided default assets should be good enough as self-explanatory examples for anyone interested in modding the game.
Each map is contained in its own folder inside assets\maps and consists of two types of files:
map.json-- describes the necessary metadata for the game, like the map size, positions of units and lights.{i}.layer,0 <= i < size.y, wheresize.yis defined inmap.json-- describes the layout of each floor.
The layer files are text files with size.x lines and size.z columns of digits from 0-3. A digit at position (x,z) represents the type of tile at this position. Digit 0 is an empty tile, digit 1 is a floor tile, digit 2 is a wall and digit 3 is a ladder.
The models are in Wavefront OBJ format. The game requires the model files to have normals, materials in the MTL format and triangulated faces. As long as they satisfy these requirements, the engine should be able to handle them. The provided models were created and exported by using Blender.
The game uses cmake as the build manager.
The recommended build configuration is 64-bit, with static linking and release (or debug for development) build type. Here are some the flags which can be provided for cmake:
-DCMAKE_BUILD_TYPE={Release|Debug}-DBUILD_STATIC={1|0}--1by default.
The recommended way to build the game is to use the vcpkg package manager and Microsoft Visual Studio at least 2017. The following command will install all the necessary external dependencies:
./vcpkg install sdl2 assimp zlib --triplet=x64-windows-static
You will need to provide the following flags to CMake:
−DCMAKE_TOOLCHAIN_FILE={PATH_TO_VCPKG\\scripts\\buildsystems\\vcpkg.cmake}−DVCPKG_TARGET_TRIPLET={TRIPLET}-- for examplex64-windows-static.
You can either use vcpkg or install the dependencies using your distribution's package manager. Then simply run cmake and make. For instance
mkdir build
cd build
cmake -DCMAKE_BUILD_TYPE=Release -DCMAKE_TOOLCHAIN_FILE=~/vcpkg/scripts/buildsystems/vcpkg.cmake ..
make
In order to create an AppImage you can run the provided script deploy_linux.sh.
You need to have the following dependencies installed:
SDL2-- creating the window, input handling, etc.assimp-- 3D models loadingzlib--assimpdependency
For debug Windows builds the following is recommended:
Visual Leak Detector-- reports any detected memory leaks
Only 2-3 memory leaks are detected and as far as I'm aware, they're the result of using the SDL library. So far so good.
The game also uses the following libraries but they are provided in the source code directly mostly unmodified:
glad-- the OpenGL functionsplog-- loggingglm-- mathematical operationsirrxml-- anotherassimpdependencynlohmann-json-- JSON filesargs-- command line argumentsboxer-- popup windows
The plog library was slightly modified because the ReSharper C++ intellisense was reporting some false-positive errors.
The modified revision in 95d28c24d102973e0cb6b7f6084144a7401b5671.
Here's the diff:
$ diff ../../../../Desktop/plog-master/include/plog plog/
Common subdirectories: ../../../../Desktop/plog-master/include/plog/Appenders and plog/Appenders
Common subdirectories: ../../../../Desktop/plog-master/include/plog/Converters and plog/Converters
Common subdirectories: ../../../../Desktop/plog-master/include/plog/Formatters and plog/Formatters
diff ../../../../Desktop/plog-master/include/plog/Log.h plog/Log.h
13c13
< #if defined(_MSC_VER) && _MSC_VER >= 1600 && !defined(__INTELLISENSE__) && !defined(__INTEL_COMPILER) && !defined(__llvm__) // >= Visual Studio 2010, skip IntelliSense, Intel Compiler and Clang Code Model
---
> #if defined(_MSC_VER) && _MSC_VER >= 1600 && !defined(__INTELLISENSE__) && !defined(__INTEL_COMPILER) && !defined(__llvm__) && !defined(__RESHARPER__) // >= Visual Studio 2010, skip IntelliSense, Intel Compiler and Clang Code Model
GPLv3, see the LICENSE file for details.
