University-Grade-Management-System





It is a project of MUST course LP002-Data Structure, which is a grade management system for students. After importing the students' grade data for one or multiple courses, users can browse, sort, and search the data, as well as calculate GPA (Grade Point Average).

Table of Contents

• Development Environment
• Install
• Usage
• Highlights
• Design
• Algorithms
• Releases
• Maintainers
• Contributing
• License

Development Environment

System	Windows 10 x64
Language	Java 8
IDE	Eclipse 2018-12 (4.10.0)

Install

1. Download jdk 8u202 and install.
2. Download UGMS_v2.1.jar.
3. Execute the binary file without any external plugins.

java -jar UGMS_v2.1.jar

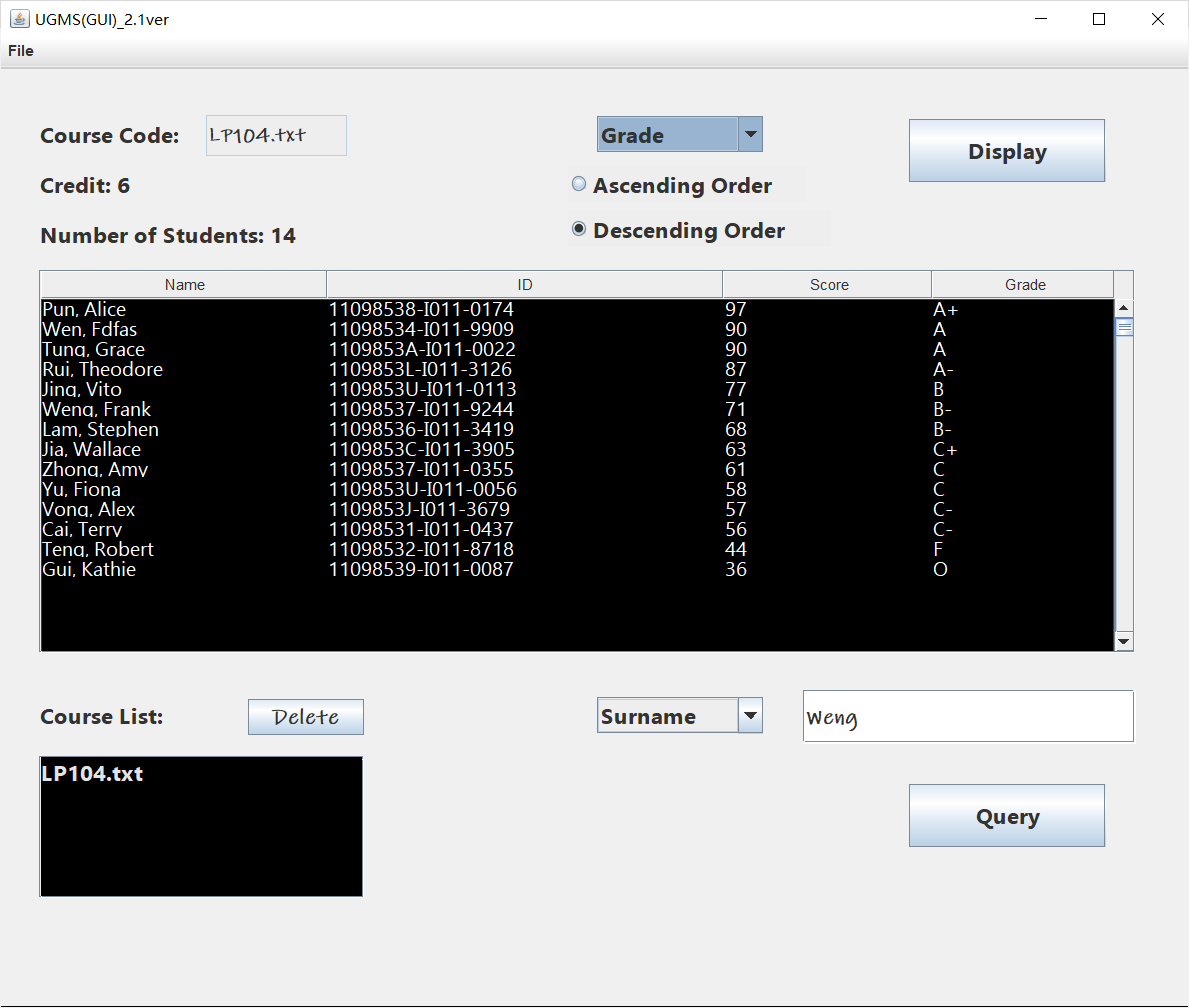

Usage

• Sort

  1. Click the File and choose Open File option.
  2. Choose a .txt course file and select the sort approach.
  3. Click the Display button. (Please import the required files before using GPA sort)

• Query

  1. Click the File and choose Import File option.
  2. Import all the .txt course files which you need and then select the query approach.
  3. Remember to input the corresponding query message.
  4. Click the Query button.



  Query Message Example
  ----------------------------------------------------------------------------
  ID: 1X09853X-X011-XXXX
  Surname: Weng
  WildCard(surname): W, We, We, Weng ... (The first letter must be upper case)
  GPA Ranging: > 3.0, = 3.0, < 3.0, >= 3,0, <= 3.0 (Need space between the operator and the number)


Highlights

• Implement a user-friendly GUI.
• Nice output format (JTable).
• Implement advanced query functions such as surname wildcard and GPA ranges.
• Allow the user to add and delete courses.
• Do not depend on any external plugins and environments other than JRE.
• The UGMS sometimes prompts alerts via message windows or checkboxes.
• No need to worry about sort time (<1 sec).

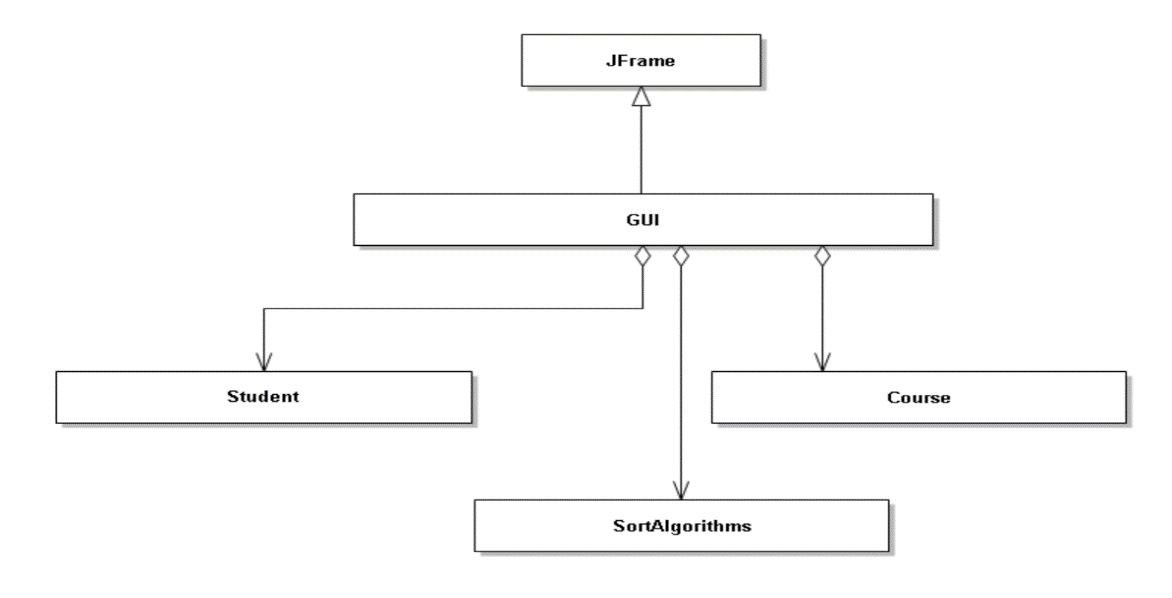

Design

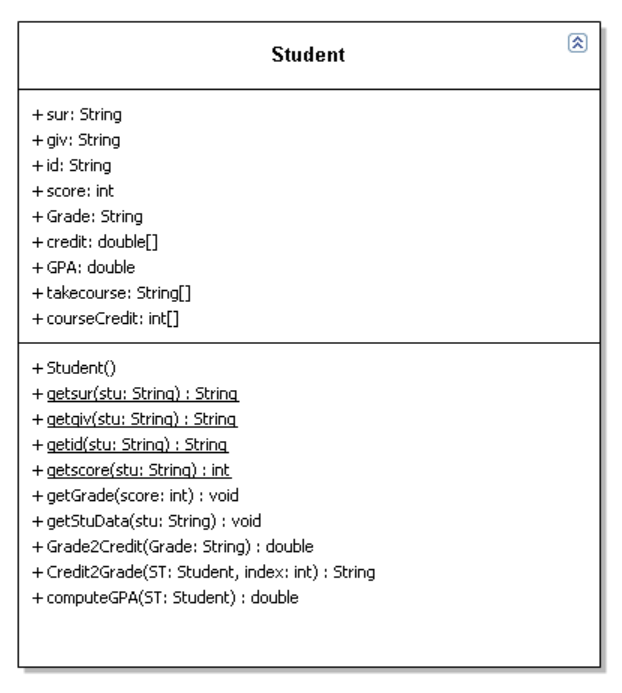

• Student Class

Variable / Function Name	Data Structure	Description
sur/giv/id/score/Grade/GPA	Basic type (String/int/double)	The basic info of each student including surname, given name, id, score, Grade, GPA and so on
credit	2-dimension array	The student's real credit for every course. ( Parsed by Grade )
takecourse	String array	All the courses the student takes
courseCredit	Int array	Corresponding credit of each taken course
Student()	/	Constructor
getsur(), getgiv(), getid(), getscore(), getGrade(), getStuData()	/	Methods to read data from the source file and return corresponding value
Grade2Credit()	/	Parse Grade to credit
Credit2Grade()	/	Parse credit to Grade
computeGPA()	/	Using credit/takecourse/courseCredit to calculate the total GPA

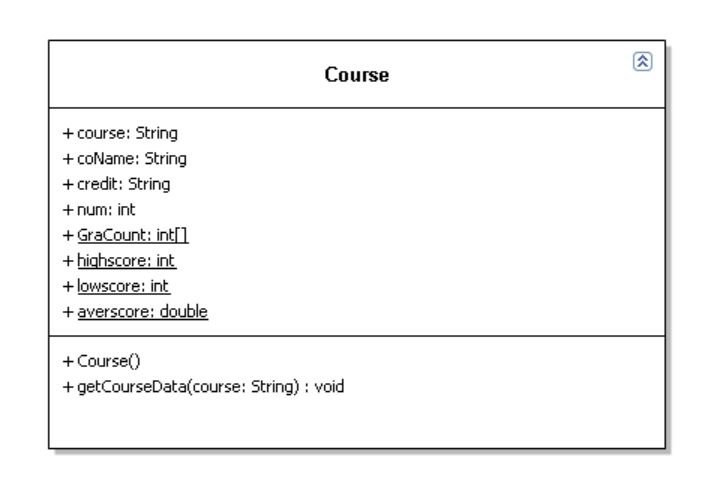

• Course Class

Variable / Function Name	Data Structure	Description
course/coName/credit/num	Basic type (String/int)	Basic info of a course
GraCount	Int array	Count the number of students in each Grade
highscore/lowscore/averscore	Int/double	Store the highest/lowest/average score of each course
Course()	/	Constructor
gerCourseData()	/	Read data from the source file and return the corresponding value

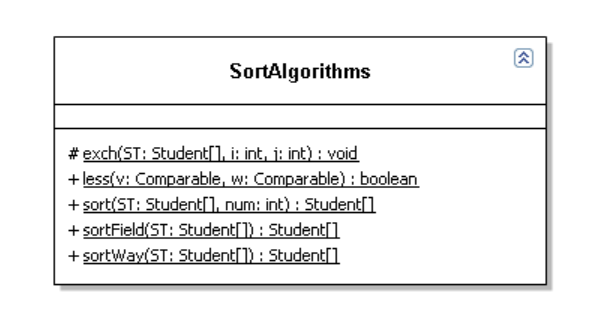

• SortAlgorithms Class

Variable / Function Name	Data Structure	Description
exchange()	/	Exchange two elements in an array
less()	/	Compare two elements ( if former < latter then return true )
sort()	/	Main sort algorithm
sortField()	/	Sort data in one aspect
sortWay()	Stack	Using stack to implement descending order

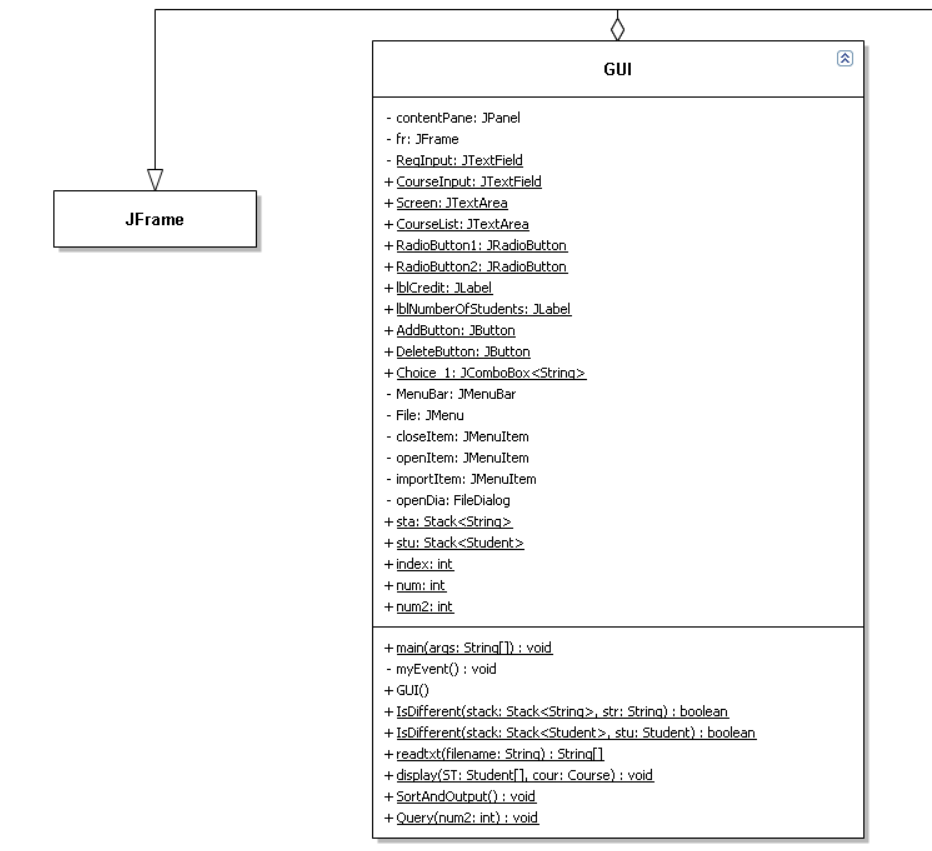

• GUI Class

Variable / Function Name	Data Structure	Description
contentPane	JPanel	The JFrame window
fr	JFrame	The Frame
ReqInput	JTextField	The input of query
CourseInput	JTextField	The input of course name
Screen	JTextArea	The main screen
CourseList	JTextArea	The list of course
RadioButton 1 & 2	JRadioButton	The ascending & descending button
lblCredit	JLabel	The credit label
lblNumberOfStudents	JLabel	The label of the student number
AddButton & DeleteButton	JButton	Add & Delete course
Choice_1	JComboBox<String>	Sort choice
MenuBar	JMenuBar	Menu bar
File	JMenu	Menu name
closeItem/openItem/importItem	JMenuItem	Menu item
openDia	FileDialog	File dialog
sta	Stack	Store the course
stu	Stack	Store the Student element
index	int	Used to store course name
num	int	Index of choice 1
num2	int	Index of choice 2
main()	/	Start of the whole program
myEvent()	void	Operation of the file
GUI()	/	Constructor ( contains GUI components )
IsDifferent()	/	Judge whether the new element is repetitive or not
IsDifferent(override)	/	Judge whether the new element is repetitive or not
readtxt()	String array	Read the raw data and split it into groups
display()	/	Reveal the data
SortAndOutput()	/	Execute sort and display method
Query()	/	Based on ReqInput, search for detailed data

Algorithms

The program adopts Selection Sort with the complexity of $O(N^2)$ and Sequential Search by each course with the complexity of $O(N^2)$. In addition, it is based on a once-input store, which means each time you input a course, the UGMS stores data of all the students who take this course simultaneously. The number of one file data is less than 1000, so it is reasonable for a standard PC to execute for/while loop within 1 second ( Total about $10^6$, and PC can compute $10^8$ per second ).

Releases

Maintainers

@KennardWang

Contributing

Feel free to open an issue or submit PRs.

License

© Kennard Wang ( 2019.11.5 )
