Practical development ginx Module

简体中文

nginx_module_echo

echo string

Nginx Version

Nginx1.0.10 https://github.com/nginx/nginx/releases/tag/release-1.0.10

The development environment configuration

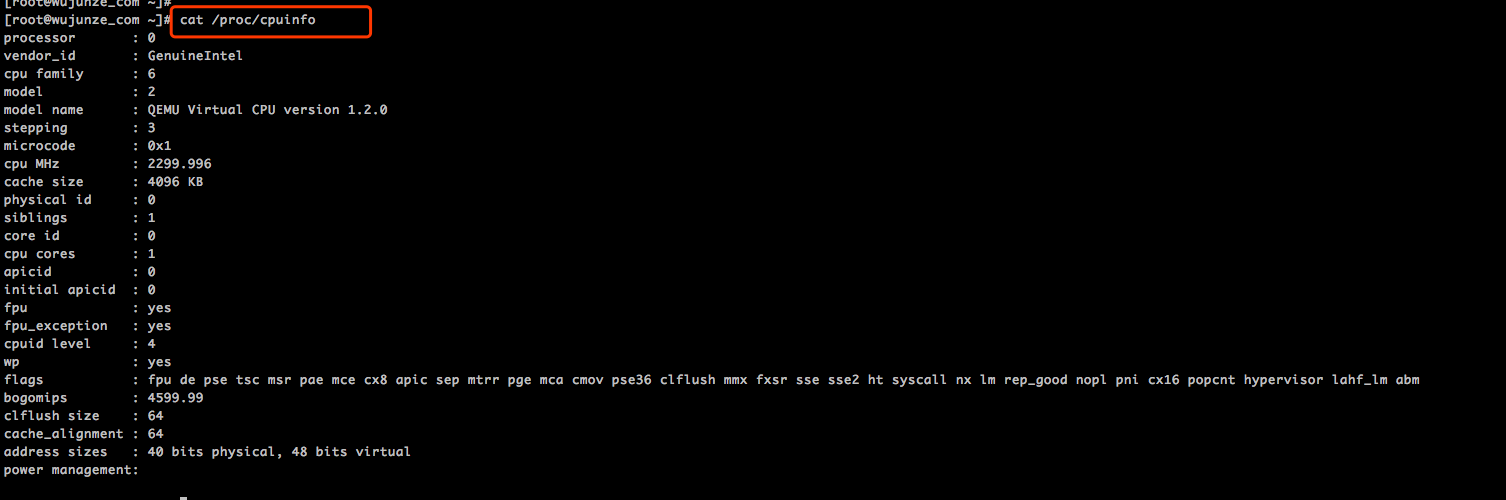

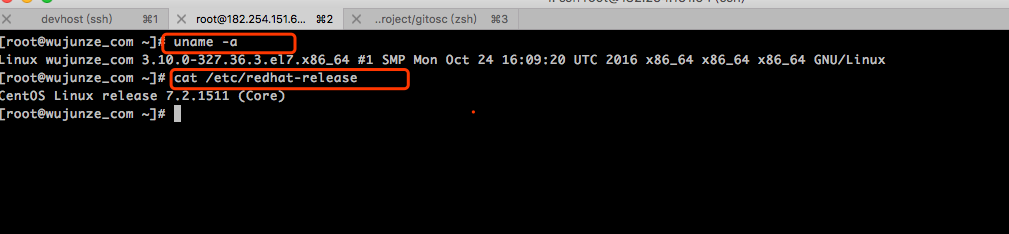

OS : CentOS Linux release 7.2.1511 (Core)

Install a clean compile Nginx

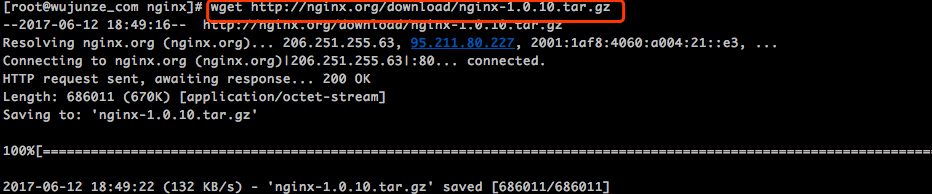

1. Download a Nginx10.10 and unpack it

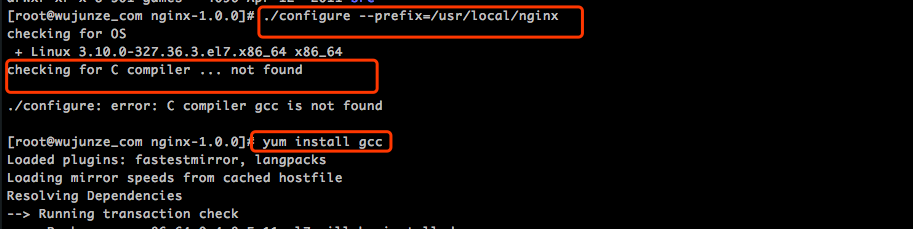

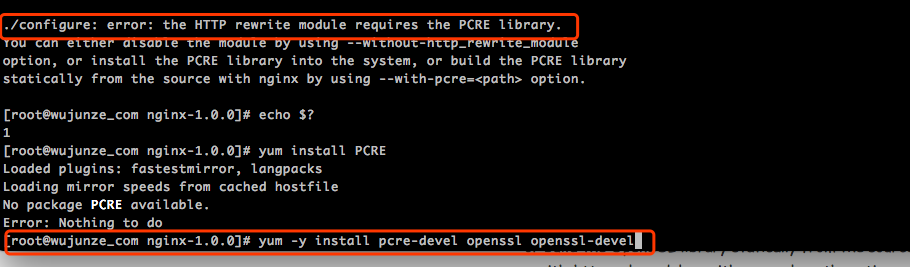

2. Install the GCC and the lib Nginx need

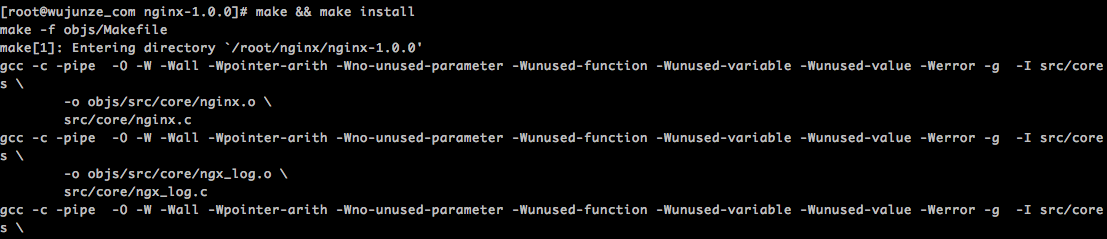

3. ./configure --prefix=/usr/local/nginx && make && make install

4. Nginx run

Definition module configuration structure

typedef struct {
    ngx_str_t ed;  //该结构体定义在这里 https://github.com/nginx/nginx/blob/master/src/core/ngx_string.h
} ngx_http_echo_loc_conf_t;

#Define Nginx instruction and parameter conversion function

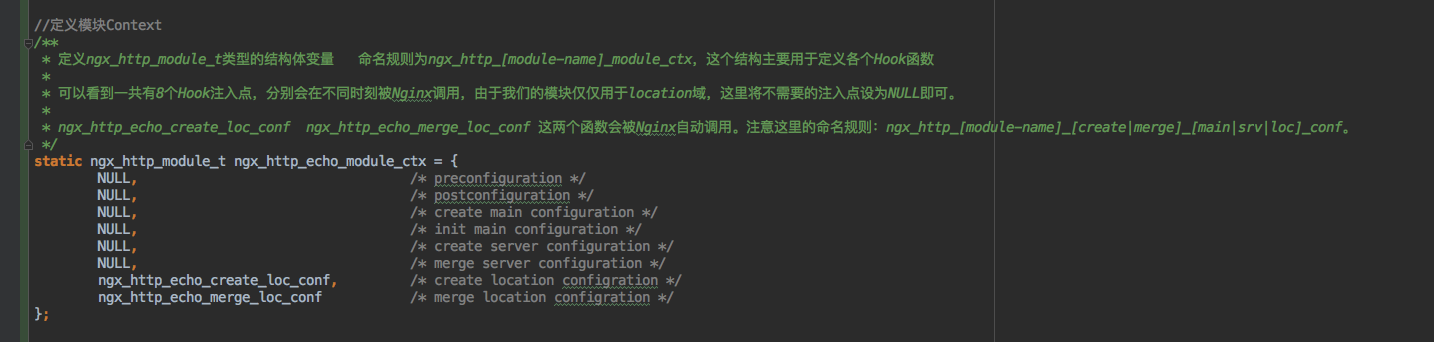

definition module Context

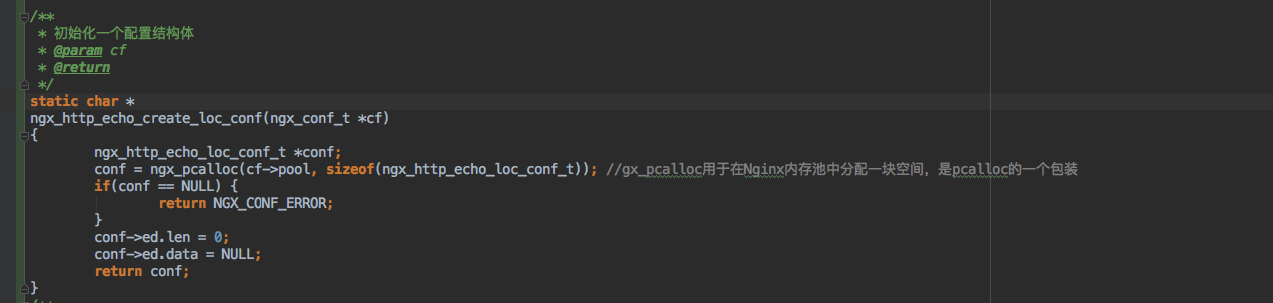

1. Define the type of ngx_http_module_t structure variables
2. Initialize a configuration structure
3. Will the father block configuration information incorporated into this structure Implement the configuration of inheritance

Write the Handler really work part of the module

Combination Nginx module

Finishing module code According to the Nginx official specification

Write the config file

ngx_addon_name=ngx_http_echo_module
HTTP_MODULES="$HTTP_MODULES ngx_http_echo_module"
NGX_ADDON_SRCS="$NGX_ADDON_SRCS $ngx_addon_dir/src/ngx_http_echo_module.c"

make && make install

 ./configure --prefix=/usr/local/nginx/ --add-module=/root/ngx_dev && make && make install

Successful installation

Modify the Nginx configuration file test Module

Nginx echo Module The successful running

If the repo help you welcome star fork Thanks!

reference

1. http://wiki.nginx.org/Configuration
2. http://tengine.taobao.org/book/
3. http://blog.codinglabs.org/articles/intro-of-nginx-module-development.html
4. https://www.nginx.com/resources/wiki/modules/
