Add Active Directory Replication Relationship Diagram by Copilot · Pull Request #239 · AsBuiltReport/AsBuiltReport.Microsoft.AD

Copilot · 2026-03-02T21:26:46Z

Adds a new Replication diagram type that visualizes AD replication topology — domain controllers grouped by site with directional edges labeled by transport protocol (IP/SMTP).

New files

Get-AbrADReplicationInfo.ps1 — Collects ADReplicationConnection objects across all forest domains, extracting FromServer/ToServer, site affiliation, transport protocol, and connection state
Get-AbrDiagReplication.ps1 — Builds the graph: DC nodes grouped into AD Site subgraphs, directed edges per replication connection, with an "Unknown Site" fallback subgraph for unresolvable site membership

Modified files

New-AbrADDiagram.ps1 — Adds 'Replication' to DiagramType ValidateSet, graph label switch, concentrate attribute (same as Sites), and dispatch branch calling Get-AbrDiagReplication
Get-AbrDiagrammer.ps1 — Adds 'Replication' to ValidateSet
AsBuiltReport.Microsoft.AD.json — Adds "Replication": true to DiagramType options (enabled by default)
Language/en-US/MicrosoftAD.psd1 / Language/es-ES/MicrosoftAD.psd1 — Adds replication-specific translation strings in English and Spanish

Original prompt

This section details on the original issue you should resolve

<issue_title>[Change Request]: Add a diagram about Replication relationship</issue_title>
<issue_description>### Description

Create a diagram showing the actice directory Replication and its relationships

Use diagrammer.core to create the diagramalso use the examples in the Example directory:
https://github.com/rebelinux/Diagrammer.Core/tree/dev/Examples

Additional Context

Use this diagram as an example:

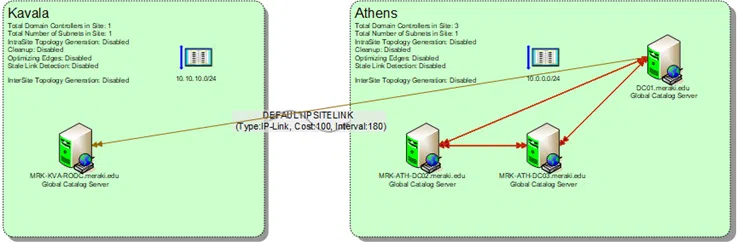

https://raw.githubusercontent.com/rebelinux/IMG/refs/heads/main/active-directory-topology-diagrammer-14.png.webp

Before submitting

I have read the documentation, and referred to the known issues before submitting this change request.

I have checked for previously opened & closed issues before submitting this change request.</issue_description>

Comments on the Issue (you are @copilot in this section)

Fixes [Change Request]: Add a diagram about Replication relationship #238

✨ Let Copilot coding agent set things up for you — coding agent works faster and does higher quality work when set up for your repo.

Co-authored-by: rebelinux <1002783+rebelinux@users.noreply.github.com>

…treamline handling of unknown site affiliations

github-actions · 2026-03-03T03:14:52Z

PSScriptAnalyzer results:

Errors: [0], Warnings: [15], Information: [0]


RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADGPO.ps1
Line       : 20
Message    : The parameter 'ValidDCFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADDomainObject.ps1
Line       : 19
Message    : The parameter 'ValidDcFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADAuthenticationPolicy.ps1
Line       : 20
Message    : The parameter 'ValidDcFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADTrust.ps1
Line       : 20
Message    : The parameter 'ValidDCFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADCACRLSetting.ps1
Line       : 22
Message    : The parameter 'CA' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : ConvertTo-ADObjectName.ps1
Line       : 21
Message    : The parameter 'DC' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADDomain.ps1
Line       : 20
Message    : The parameter 'ValidDcFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADKerberosAudit.ps1
Line       : 20
Message    : The parameter 'ValidDCFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADOU.ps1
Line       : 20
Message    : The parameter 'ValidDCFromDomain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-ADObjectSearch.ps1
Line       : 21
Message    : The parameter 'Filter' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-ADObjectSearch.ps1
Line       : 22
Message    : The parameter 'Properties' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-ADObjectSearch.ps1
Line       : 23
Message    : The parameter 'SelectPrty' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : ConvertTo-ADCanonicalName.ps1
Line       : 20
Message    : The parameter 'Domain' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Get-AbrADDFSHealth.ps1
Line       : 20
Message    : The parameter 'DCs' has been declared but not used.

RuleName   : PSReviewUnusedParameter
Severity   : Warning
ScriptName : Invoke-AsBuiltReport.Microsoft.AD.ps1
Line       : 21
Message    : The parameter 'Credential' has been declared but not used.

Copilot

Pull request overview

Adds a new Replication diagram type to visualize Active Directory replication topology (DCs grouped by site with protocol-labeled connections), and wires it into the existing diagram generation/config/translation pipeline.

Changes:

Introduces Get-AbrADReplicationInfo (data collection) and Get-AbrDiagReplication (graph construction) for replication topology.
Extends diagram entry points (New-AbrADDiagram, Get-AbrDiagrammer) and default config to support Replication.
Adds EN/ES translation strings for replication diagram labels/messages.

Reviewed changes

Copilot reviewed 7 out of 7 changed files in this pull request and generated 9 comments.

Show a summary per file

File	Description
Src/Private/New-AbrADDiagram.ps1	Adds `Replication` to diagram type validation, label selection, and dispatch to the new diagram function.
Src/Private/Get-AbrDiagrammer.ps1	Allows `Replication` as a selectable diagram type.
Src/Private/Get-AbrDiagReplication.ps1	New: builds the replication topology graph (sites as subgraphs, DC nodes, replication edges).
Src/Private/Get-AbrADReplicationInfo.ps1	New: collects replication connection data across domains/DCs for diagramming.
AsBuiltReport.Microsoft.AD.json	Enables `Replication` diagrams by default in configuration.
Language/en-US/MicrosoftAD.psd1	Adds replication-related translation keys (EN).
Language/es-ES/MicrosoftAD.psd1	Adds replication-related translation keys (ES).
