alarm-thingy

"AAAAAH!" - this alarm if you won't get up

alarm-thingy is an ESP32-based Smart Alarm that tracks your sleep, and gets angry if you don't get up. Through on a pressure sensor, it can recognize if the user gets out of bed or is taking a snooze, and the alarm will stop if the user stops being lazy and starts their day. Here are some of the features of this project:

• Beautiful Web App to interact easily with the alarm! Not feeling using the Web App? Check out the Telegram Bot.
• Based on your location and its weather condition, the alarm will play a different, soothing sound.
• Add as many alarms as you want, and decide their weekly pattern. Changed your mind? You can update the alarm on the fly, as soon as you change the values.
• AI-based user detection: through Prophet, you can check the likely-hood of the user being in bed at the current time.
• Easy feedback for the status of the ESP32: depending on its network status, the alarm will play a sound and blink whenever it is successfully sending data to the server.
• Laziness-mitigation technology: if you won't be up by 30 seconds since the start of the alarm, a high-volume metal soundtrack will play.
• No need to setup IPs: the Broker and server will find the alarm by themselves through mDNS.
• Having connection problems? The alarm will reconnect to the server as soon as the connection is available again.
• Lots of statistics in the Web App: View the total sleep time in the last 24h, view the current weather in your location, and more!
• View the current state of the sensor in real-time in the Web App through a Grafana dashboard.
• Switch to HTTP or MQTT on the fly for sending sensor data.
• And much, much more...

More information can be found in the docs/report.pdf file.

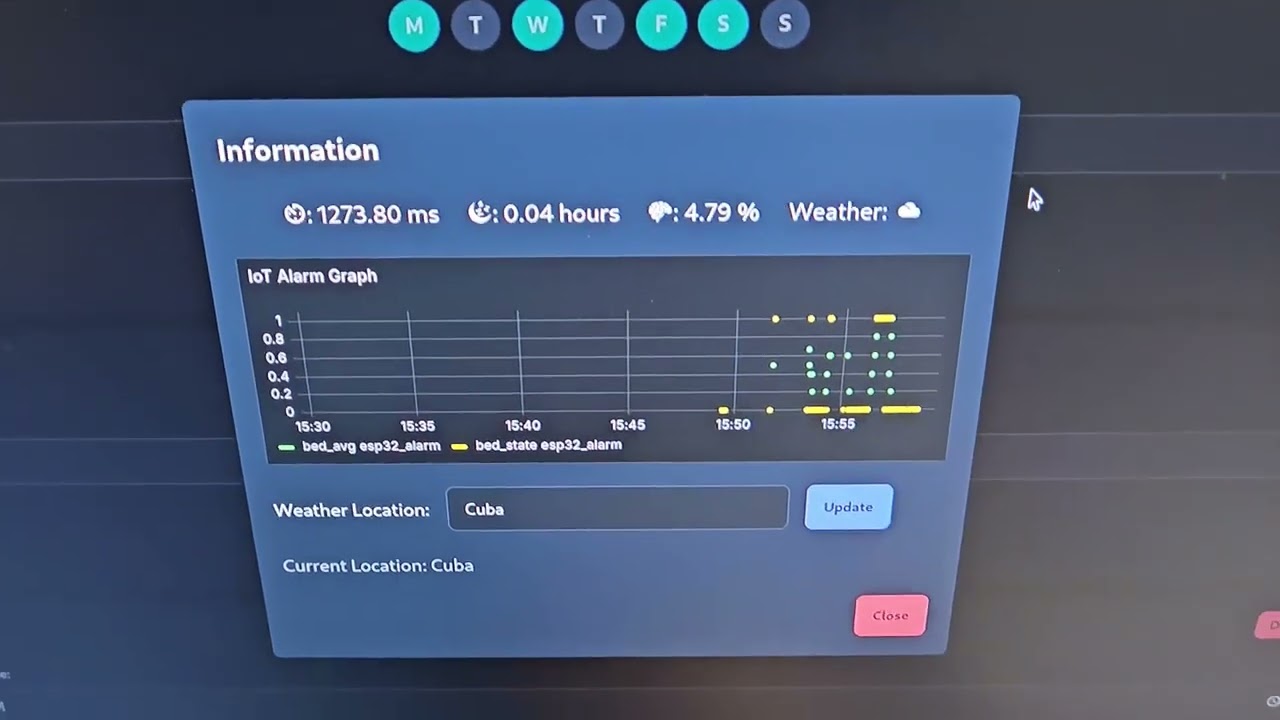

Click the following link to watch a video demo of the project's features: (Please, ignore my thick accent/bad english in the video, I was really tired. I swear I speak much better normally)

---

Setup instructions

Software

InfluxDB

To setup InfluxDB, you'll first need to log in to the frontend using the default credentials (username:admin, password:admin123). Afterwards, you'll need to create and copy a secret token. Said token must be inserted into 2 different files.

• backend_secrets.py, which must be inserted into the backend folder.
• analysis_secrets,py, which must be inserted into the data_analysis folder.

In each file, you'll have to create Python variable named influxdb_api_token. e.g. influxdb_api_token = "[your_token_here]"

Grafana

The Grafana environment is already set up automatically by Docker compose through the files in the grafana folder.

Warning

You may need to change the permission of Grafana's data folder for it to work properly. To do that, simply run the command: chown -R $USER grafana/data && chmod -R 777 grafana/data

Secrets

You'll have to setup 2 additional secrets files:

• esp_secrets.py, in the esp32 folder. This file must contain 2 variables named WIFI_SSID and WIFI_PASSWORD respectively.
  • e.g. WIFI_SSID = "my_wifi_ssid" and WIFI_PASSWORD = "my_wifi_password"
• telegram_secrets.py, in the telegram_bot folder. This file should contain the Telegram Bot by assigning it to the TELEGRAM_BOT_TOKEN variable.
  • e.g. TELEGRAM_BOT_TOKEN = "[your_token_here]"

AI model

To enable the AI features, you'll need to run the train_fake_model.py script from the data_analysis folder.

python train_fake_model.py

This will output the model weights trained on a synthetic dataset in which the user's habits consists on sleeping from 9PM to 5AM. You can also train a model on real data using the train_data_from_influxdb.py script to extract the data from InfluxDB and then use the train_model.py script to train the model on the InfluxDB data.

Hardware

Circuit schematics

Here are the schematics on how to setup the speaker and DFPlayer Mini module with to interface with the ESP32.

In addition, you need add a LED on pin 23 and the pressure mat on pin 18. Otherwise, they can be customized based on your preferences.

SD Card

To make the ESP32 actually play some sounds, you'll need a MicroSD card. Insert it to your PC and add to it 7 different mp3 files which correspond to each chime that you want your ESP32 to play.

---

How to start

1. Use the docker-compose file provided in the repository, and start the infrastructure with the following command:

docker-compose up --build

2. In addition, you'll need to upload the ESP32 firmware to the ESP32 itself using something like Pymakr. There is also a handy VS Code extension.
3. Finally, start the backend server using the following command in the root of the project folder:

python backend/server.py

Aaaand... you're done! Enjoy your smart alarm experience!

To view the Grafana dashboards, navigate to localhost:3001, and for the Web App, visit localhost:3000.

Accuracy script

To run the accuracy script, make sure that the InfluxDB instance is up and running. Then, simply type the command:

python sleep_accuracy.py [hours slept]

E.g. python sleep_accuracy.py 8.0

---

Screenshots

---

Resources

This DFPlayer Mini MicroPython library was used: https://github.com/lavron/micropython-dfplayermini. It was super handy for this project and I'm infintely grateful to the original author.
