Database Structure

A detail description of our MariaDB/MYSQL database structure. (It's not the best but it's honest work 👀)

Updated for V1.2

Available Tables

• plotsystem_ftp_configurations
• plotsystem_countries
• plotsystem_servers
• plotsystem_city_projects
• plotsystem_builders
• plotsystem_reviews
• plotsystem_difficulties
• plotsystem_plots

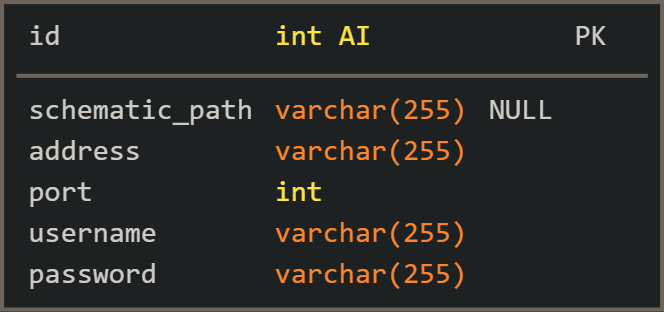

plotsystem_ftp_configurations

Configuration data for the ftp servers.

• schematic_path specifies the path to the schematic folder. If no path is specified, /var/lib/Plot System/schematics is used by default.
• address, port, username & password credentials for the fpt server.

Example:

schematic_path:  "/plot-system/schematics"
address:         "177.013"
port:            22,
username:        "jo_kil",
password:        "********"

plotsystem_countries

All countries within one Build team are stored in this table.

• server_id refers to the server the country runs on.
• name is the country ISO code.
• head_id is the id for the playerhead corresponding to the country flag. Player head ids can be found at https://minecraft-heads.com/. If no id is specified, a steve head will be used by default.

Example:

server_id:  2,
name:       "AT",
head_id:    "40404",

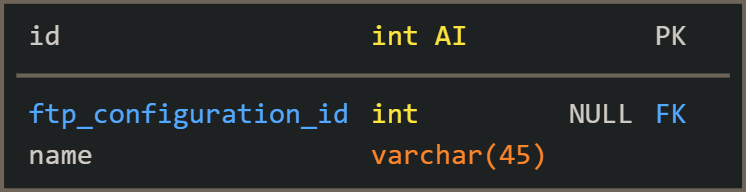

plotsystem_servers

This table is for all Terra servers.

• ftp_configuration_id the fpt server from which to paste from. Only leave blank if you use simbolic links. If two servers use the same fpt configuration, both will paste the schematic.
• name name of the server.

Example:

ftp_configuration_id:  1,
name:                  nitrado-net-ftp

plotsystem_city_projects

The city projects each contain a number of plots. Multiple buildsites can be present in a singe city.

• country_id what country the city is in.
• name build project name.
• description build site description.
• visible if the buildsite is shown to builders / can be build on.

Example

country_id:   1
name:         vienna city center
description:  the center of the city of vienna
visible:      1

plotsystem_builders

Table for builders, which can build on plots.

• uuid builder uuid.
• name builder name.
• scoretotal accumulated number of points.
• completed_plots number of plots completed.
• first_slot, second_slot & third_slot in each of these attributes one plot is store, this is to ensure that only 3 plots can be built at once. This value is NULL if the plot has no slot.

Example:

uuid:             "c36ceb6f-da46-43de-a49a-7137cd5d5552"
name:             "JO_KIL"
score:            153
completed_plots:  37
first_slot:       345
second_slot:      NULL
third_slot:       457

plotsystem_reviews

Reviews for a plot, multiple reviews can exist for one plot if a build is rejected.

• reviewer_uuid the uuid of the player reviewing the plot
• rating the rating of each category in a stringified array. Each category has a value from 0-5 (0-> plot is rejected, 1 -> worst, 5 -> best). There are 4 categories (accuracy, block pallete, detailing, technique).
• feedback the written feedback of the plot
• review_date timestamp when review is completed
• sent boolean if the builder of the plot has recieved his review. This happens automatically when the builder joins the server.

reviewer_uuid:  "c36ceb6f-da46-43de-a49a-7137cd5d5552"
rating:         "2, 4, 5, 3"
feedback:       "nice plot (‾◡◝)"
review_date:    2001-9-11
sent:           1

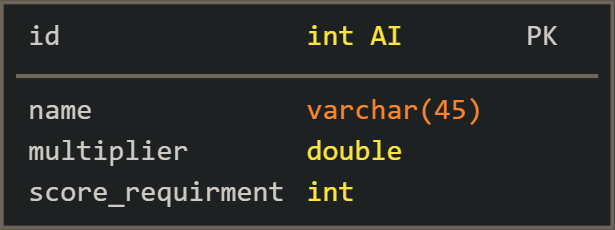

plotsystem_difficulties

Different difficulty tiers for the plots. Builders can only build on a certain difficulty if thier score is high enough.

• name name of the difficulty.
• multiplier score multiplier for this plot. The score is calculated by multiplying the review sum with this value.
• score_requirement the minumum score a builder requires to build this plot

name:               "Literally Impossible"
multiplier:         100000
score_requirement:  1000

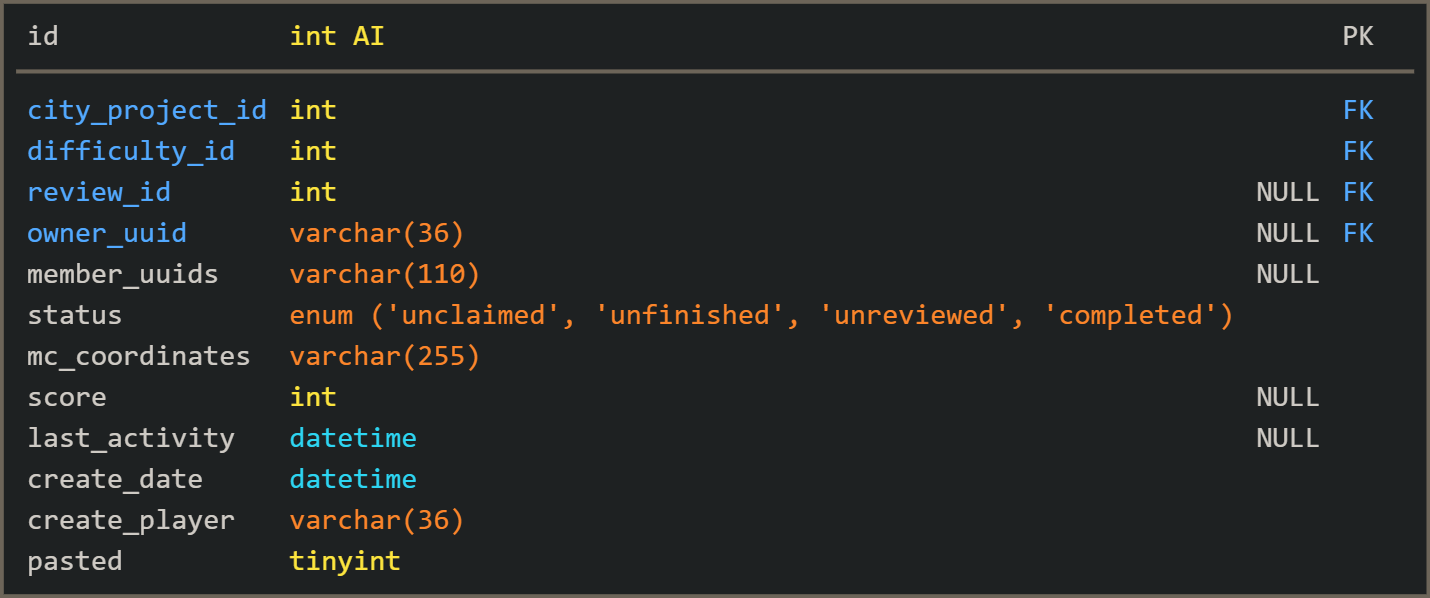

plotsystem_plots

• city_project_id
• difficulty_id
• review_id
• owner_uuid
• member_uuids
• status
• mc_coordinates
• ``
