Infrastructure

Setup

USE Model

Before spinning up the docker containers, some preparataion must be done. First of all, you must dowload the embedding model from Tensorflow. The model is the Universal Sentence Encoder (USE) model created by Google ¹. By running the following commands, a new directory containing the model will be saved in the models directory (it is normal for the script to hang for a bit, the model is ~1GB).

conda env create --file=./scripts/environment.yml
conda run -n api-scout python ./scripts/download-use.py

.env

In the compose directory you will find a .template.env file. Duplicate this file (renaming it to .env) and change it appropriately. This env file is used by the docker-compose files (for example to set the passwords of the dbs admin user).

Config

In the config directory you will find a template.config.yml file. Duplicate this file and change it appropriately. This configuration file is used by the backend of API Scout to set some important variables. N.B. if you are using API Scout in release mode (the GIN_MODE env variable in the backend docker-compose file), the duplicated file should be renamed to release.config.yml. If you are using the debug mode, rename it to debug.config.yml.

Running the Containers

To spin up the container and bring up the whole infrastructure, you must run the command below.

docker compose -f ./compose/backend.yml -f ./compose/elastic.yml -f ./compose/mongo.yml -p api-scout-infra up -d

Troubleshooting

Backend Container Crashes on Startup

If the backend container crashes as soon as it goes up, then check if the config directory contains either a debug.config.yml or release.config.yml (depending on what you have set for the GIN_MODE env variable in the backend docker-compose file).

Illegal Instruction in Models Container

If you are using an Apple Silicon Mac, then you might encounter an error in which the models container refuses to start with the error Illegal instruction. In this case, go to the Docker Application > Settings > General and uncheck "Use Rosetta for x86_64/amd64 emulation on Apple Silicon". Now click "Apply & Restart", the issue should be fixed now.

Cannot Access Model from Models Container

If you are not able to access the embedding model from the models container, make sure that you have downloaded the USE model, and that the models directory contains the embedding model.

Elastic Container Crashes with Code 137

If the elastic container crashed unexpectedly with a 137 code, it could be that Docker runs out of memory. This container by default requires 6GB of RAM, but if you don't have enough, you can comment the line below (contained in the elastic.yml file).

- "ES_JAVA_OPTS=-Xms6000m -Xmx6000m"

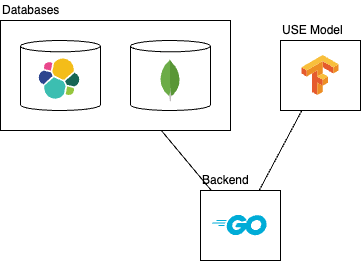

Diagram

Footnotes

1. D. Cer, Y. Yang, S.-y. Kong, N. Hua, N. Limtiaco, R. St. John, N. Constant, M. Guajardo-Cespedes, S. Yuan, C. Tar, Y.-H. Sung, B. Strope, and R. Kurzweil, “Universal Sentence Encoder,” Mar. 2018. Publication Title: arXiv e-prints ADS Bibcode: 2018arXiv180311175C. ↩
